GSM-AIR GSM Remote Control System ( GSM Relay Control )

( gsm реле , gsm-реле , gsm выключатель , gsm реле с пультом ду )

(New version 2016 GSM relay controller, more features including: Log data, fast program and reset button on board, Support customized SMS controller for ON/OFF controller and pulse control each seperate relay channels)

Same quality, better functions and more features!

What is E-UPdate Service? Easily download the latest firmware to enhance the product's performance

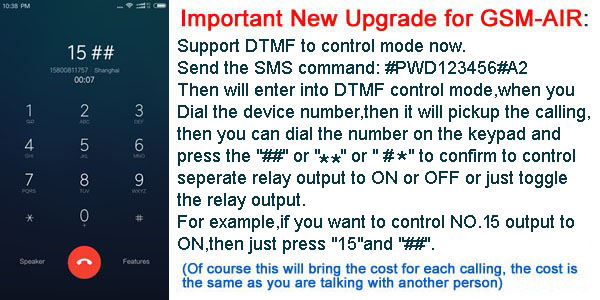

(Only GSM Version support the DTMF remote controller, 4G version don't support this)

Maximum authorized phone numbers: 200

Package including:

One pcs GSM-AIR GSM controller box
One pcs GSM Magnet mount antenna (3 meter wire length)
One pcs USB program adapter

For android app,please go to google Play Store to search "GSM RELAY"

For Iphone app,please go to Apple App Store to search "GSM RELAY" , GSM-RELAY app can be use d to manage the waferstar GSM-RELAY, GSM-CTL,GSM-AIR and GSM-TOG several types GSM controllers.

For android app,please go to google Play Store to search "GSM RELAY"

For Iphone app,please go to Apple App Store to search "GSM RELAY"

you will find the APP Logo:

If cann't install from google play store, then just download directly:
GSM-RELAY APP Download directly: http://www.waferlife.com/downloads/gsm-relay-app.rar

Order the samples directly from http://www.wafer-shopping.com :

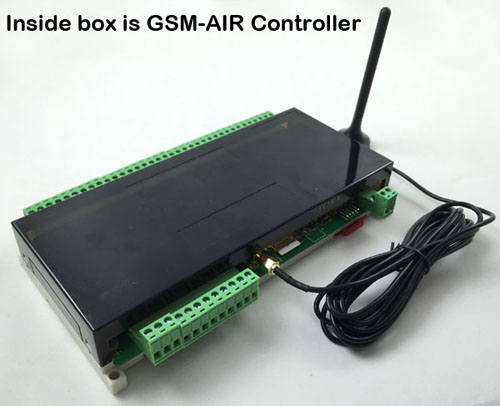

The GSM-AIR is a wireless gsm remote controller switch that connects to the GSM cell phone network.
It has sixteen independent relay switches, and the NO.1 Relay switch is activated by calling its cell phone number, it will reject the call without answering and switch on the device connected to it,then there are no call costs incurred when dialling the unit, it will recognise an authorised telephone number calling it and reject the call without answering.
It has other 15 independent relay switches which can be switched on or off by sending the GSM-AIR an sms text message.

Specifications:

  • Real-time & interactive control
  • 16 channels  250V 10A 50 Hz relay contacts
  • Works  with GSM phones
  • Operating temperature (-25 .. +60 °C)
  • Relays operates almost every appliance
  • Small standby power (< 10mA 12V)
  • Relay memory after power failure
  • Optional password to keep the system at safety operating mode.
  • Remote Password change
  • Two operating mode optional ( remote setting with GSM phones)
  • One relay is woking with the phone calling, and others working with the SMS
  • Commands can added to GSM-phone number for raeady made commands
  • Working voltage is at DC12V.
  • On board rechargeable battery for power off alarm

GSM-AIR app software on the mobile phone for android and iphone system

Go to google Play store and Iphone app store to search keyword : " GSM RELAY "

Wafer GSM-AIR USB programmer

GSM Magnet Mount Antenna ( Specially designed for Water proof type GSM remote control box)

WAFER WiFi-Plug for GSM-AIR (Model:WiFi-Plug)

Applications:

Applications include the remote control of heating in holiday homes, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting of remote servers, arming and disarming security systems, access control of gates and garage doors.
