WiFi to RS232 and RS485 converter

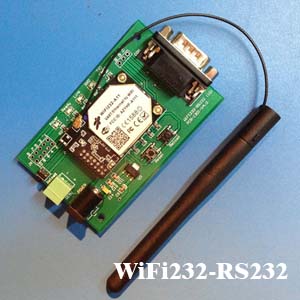

Model: Wifi232-RS232

Convert the wifi to RS232
Support Work As STA/AP Mode
RS232 Male port with RTS/CTS
DC5V Power supply
Reload button on board for recover factory settings

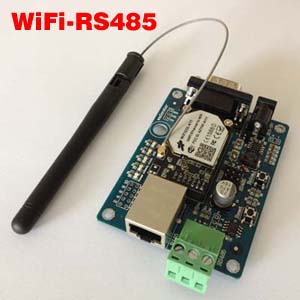

Model: Wifi-RS485

Convert the wifi to RS485 or RS232
Support Work As STA/AP Mode
Jumper on board to select the RS485 or RS232
RS232 Male port with RTS/CTS
RJ45 internet connection on board
DC5V Power supply
Reload button on board for recover factory settings

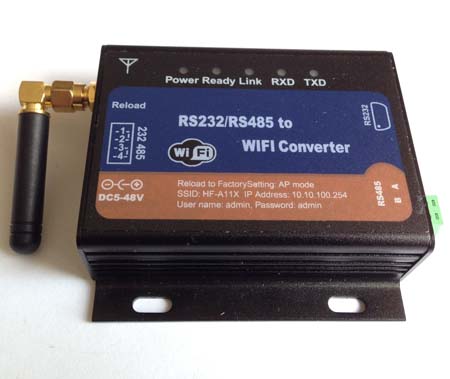

Model: Wifi232-RS232

Convert the wifi to RS485 or RS232
Support Work As STA/AP Mode
RS232 Male port with RTS/CTS

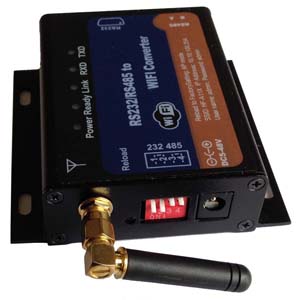

DIP switch on board to select the RS485 or RS232
DC5V-48V Power supply
Reload button on box for recover factory settings
Aluminium box



Product Features:

New WIFI to RS232 / RS485 Converter 802.11 b/g/n is for convert RS232 or RS485 data to TCP/IP socket, use PC or notebook or Mobile to control serial device.

WIFI RS232 RS485 convert Features:

1. UART to WIFI module on board, see the module file for detail

  1. Support IEEE802.11 b/g/n Wireless Standards

  2. Support TCP/IP/UDP Network Protocols

  3. Support Work As STA/AP Mode

  4. Support Router/Bridge Mode Networking

  5. Support Transparent/Agreement Transmission Mode

  6. Support AT+ Instruction Set for Configuration

  7. Support Friendly Web Congiration Page

  8. FCC/CE Certificated

2. RS232 Male port with RTS/CTS

3. RS485 Interface

4. DC 5~48V Power in put

5. RS485 or RS232 choose by switch

6. Reload button for recover factory settings (Press more than 1 seconds and free it,wait for it restartup)

7. Power Ready Link RXD TXD LEDs

8. Import pins link out 2.54 2*5

9. DC5.5*2.1 Power input interface

10. Pin9 in DB9 can link to Power by short the PCB jumper at the PCB back

11. Power adaptor and Serial cable included

12. Demo code for TCPIP test, VB, Boland C++, Delphi, Android.

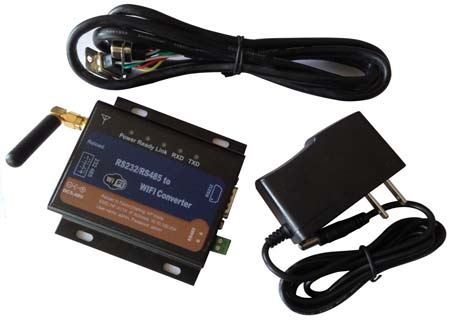

Wifi232-RS485 whole kits package including: RS232 cable, Power adapter, WiFi232-RS485 data converter box
