The RS232-MDB, Perfect for PC to MDB interfaces ( PC to MDB adapter )

It is an adapter to existing vending machines to allow the PC to work as the payment device for the vending machine.

RS232-MDB allows the PC to act as a slave cashless payment device for existing vending machine controllers (VMC). It allows the PC to act as a cashless device and add credit(s) to the vending machine. The RS232-MDB interfaces any MDB vending device to the PC via the serial port. By default it acts as device type 10 (cashless device). It has the switch on the box to select the working address as 10H or 60H.

This describes the Interface Protocol for the RS232-MDB Hardware circuit. The RS232-MDB interfaces any MDB vending device (6-pin molex/5pin MTA) to the PC via the serial port (DB-9) Future support may include Universal Serial Bus. The RS232-MDB protocol is compatible with standard RS-232 Protocol.

Wafer also provide the best after-sales service for RS232-MDB adapter box.You can add our online service skype for before-sales and after-sales service. and we also provide the SDK for your easy development.

For some old vending machine,if it doesn't support the cashless device ,our adapter box also can be updated to work as the MDB Coin validator or Bill acceptor.

( NAMA Releases MDB Version 4.3 and WAFER RS232-MDB box support V4.3 protocal . If users already have the vending machine that support the V4.3, you can contact our skype service to know more how to use it. )

For example the New “Remote Vend” provides a method that allows the MDB cashless protocol to run a product dispenser on the VMC. For example, a mobile phone application can select products on the phone screen without touching vending machine buttons / screen.

Check the video : https://www.youtube.com/watch?v=afq4uCf59Ac

You can send the easy command list,then can communicate with the vending machine to add the credit. and your computer would start to work with the Our RS232-MDB adapter box to act as the cashless payment device to vending machine.

RS232-MDB Adapter box

RS232-MDB Adapter SDK

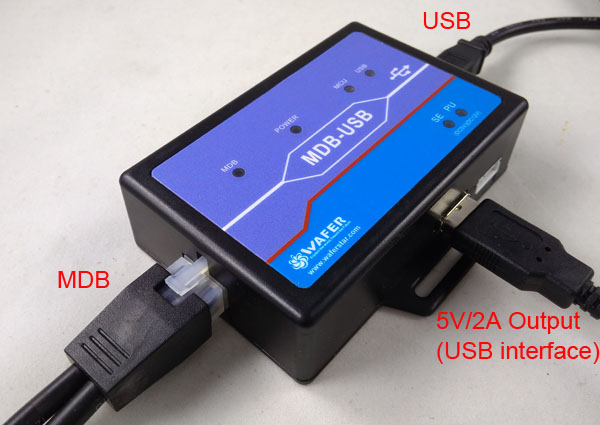

We also can provide the USB interface cashless payment interface: MDB-USB

----------------------------------------------------------------------------------------------

What is MDB-RS232 (MDB to PC) and RS232-MDB (PC to MDB) ?

Before order,you should know exactly what is the difference and then you will know what type is the exact products yoou need to order:

MDB-RS232 (MDB to PC) is used to connect the MDB bill acceptor,coin validator,cashless payment device to computer. then you will design the Software that will run in the PC and work as the master main vending controller. For example,you develop the kiosk information machine. then you need to connect the MDB bill acceptor,coin validator to computer,but you don't know how to connect the MDB interface payment device to computer, because computer only has the RS232 port, no MDB port.then you need to order the MDB-RS232 adapter (MDB to PC Adapter ).

RS232-MDB (PC to MDB) is used to connect the pc to existing vending machine.then you will need to design the Software that will run in the PC and work as the slave cashless payment device.and then you PC will work as a cashless payment device to vending machine. For example,you want to use the PC to give payment credit to existing vending machine, or if you want to make the internet connection to the vending machine and give credit to vending machine remotely, then you need to order the RS232-MDB adapter (PC to MDB adapter ).

Order the samples directly from http://www.wafer-shopping.com :

==========================================================

Wafer also support the following special solutions for MDB interface:

1. For Old vending machine,that doesn't has the cashless interface,but you want to connect the PC to vending machine and add the credit to vending machine
2. Want to connect a Pulse interface device to vending machine
3. Want to connect a cheap pulse type coin acceptor to vending machine and working as a MDB interface coin acceptor

MDB bill acceptor simulator:

MDB coin acceptor simulator:

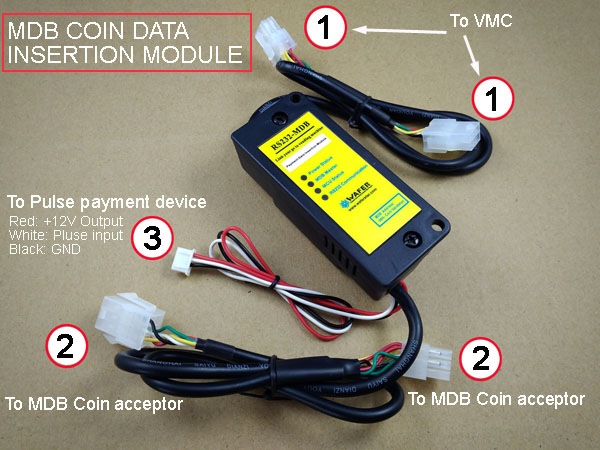

MDB coin acceptor data insertion module:(For this module,must work together with the existing coin acceptor)

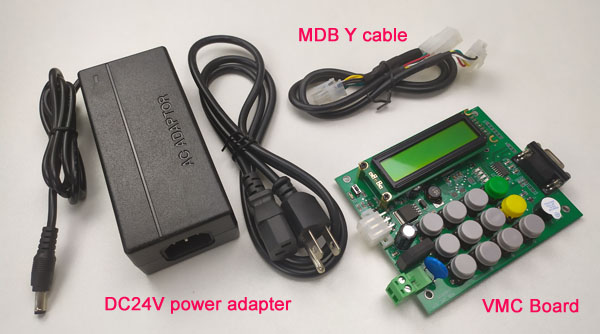

========================== Optional test main board ==========

Need a VMC Simulator from http://www.letpos.com or http://www.letpos.cn

Learn more about MDB-RS232 adapter box from http://www.mdb-rs232.com

Learn more about RS232-MDB adapter box from http://www.rs232-mdb.com

(We also will publish all Test files, Product information with these web pages)

Learn more about MDB protocal from http://www.mdbprotocal.com
