GSM Intercom - GSM Apartment 2016 New designed and New mold

Product Special Features:
Power input: DC12V normal power supply
Inside board support the rechargeable Lion battery (3.7V) For power off alarm
Press the keypad to input the room number to call the owner
Maximum 400 Room number, Each Room number Preset two numbers for calling
Double Relay output for gate opener
Double Alarm input port for security sensor connection
Built-in All GSM-KEY Functions
Stainless Steel Front panel
Robust thick ABS Box
Good Gain Antenna inside the box for safety
Whole box Rain proof design
Key Lock for safety mounting and Easy maintance
Box Size:165*117*54mm

What is E-UPdate Service? Easily download the latest firmware to enhance the product's performance

Packing List including:
1 pcs GSM-APARTMENT box ( Inside GSM-APARTMENT box including: 1pcs Battery,1pcs antenna )
1 pcs USB Programmer




About GSM intercom GSM controller for apartment house-----------
When a visitor arrives, they input the room number and push the "#" call button and the unit generates a high quality audio call to up to 2 numbers to announce their presence. Should the person taking the call wish to allow entry, they simply push the button on their telephone handset to release the on board relay.
Maximum 400 Room numbers and each room number can preset two phone number for calling.
Maximum 800 phone numbers to call the system for free to trigger the on-board relay to activate gates or doors
Not only is this system offering two way speech, Caller ID access control allows known numbers to call the unit. When the call arrives, it is immediately dropped and if the number is known, the gates or door is released.
Ideal for using mobile phones instead of 'key-fobs' in that up to 800 users can operate the gates in this way.
Simple to install, setup and operate
Even during talking ,can press the button on the mobile phone keypad to release the gate opener for visitor.

Inside recharageable battery for working and alarm when power off and the battery would be charaged automatically when normal power supply working again. also if the battery volume is low,it will also send the alarm.

Download manual

Download PC Software

WAFER Firmware update service for GSM-APARTMENT

Order the samples directly from http://www.wafer-shopping.com :

GSM intercom Type: Apartment
Ideal for apartment house access controller

Appear to be home when you're not & never miss deliveries... Convenience and security! Anti-vandal GSM Intercoms for flats, apartments or offices. Heavy duty GSM Door Entry and Intercoms..

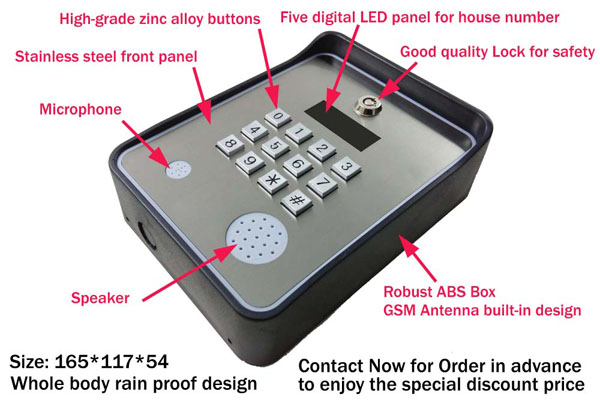

Front panel description:


Circuit board description:


 Visitor audio (voice) call button for intercom talkinig

  • Remote intercom and gate or door access controller using GSM.
  • Maximum working for 500 Room numbers and Each room number can preset two phone number inside
  • Innovation Water proof lock design and stainless steel front panel
  • Dials out when a user input a Room number with the keypad.
  • Will ring up to 2 telephone numbers in sequence, mobiles or landline telephones.
  • Vandal resistant design, tough stainless steel call point.
  • No screw used for the front panel mounting
  • Lock for easy mounting and safety
  • Double relay output for optional easy control the gate opener or alarm parts
  • Remote control the relay output through the keypad pressing while talking with visitor



GSM-APARTMENT USB Program adapter to PC Software:
