MDB timer control board - MDB smart type

Working with MDB bill acceptor and MDB bill acceptor

Our board has the Smart eye for self-service business

MDB-SMART MDB Timer Control Board - Single Output Channel Output: Single Channel Relay Control Output Input: MDB Bill Acceptor and MDB coin validator,Pulse type coin acceptor RS232 type output interface to optional GSM monitor and alarm board 1.Credit saved and easy to be checked; 2.System setup easily through the push button; 3.Connector for Pulse type acceptor also optional; 4.We have the smart sensor to seen,monitor and alarm everythings; 5.Smart timer pause design,customer pause the machine,and timer would be paused;

This board is specifilly designed and working very smart for self-service：

Self- service car wash, self-service massage chair

It can detect the device working or not,

For example,for massage chair: Owner preset the timer per coin value and when Customer put the money in,then control board would go into waiting mode(maximum 5 minutes to wait),if custmer start the machine,then the timer start to count down,During the machine runing,if customer pause the machine to have a rest,then the timer would be paused automatically (maximum pause timer is 2 minutes),when cusomter start the machine again,then the timer start to count down again,when the timer is out,then the machine would be stoped.

For example,for self-service car wash machine.....

Optional Parts: GSM Monitor and alarm board

Can monitor the following status:

1. Bill acceptor and coin validator error information

2. Bill acceptor and coin validator income amount and cash box alarm

3. Vending machine door alarm switch input

4. Backup power supply alarm

Optional Parts:Power supply adapter DC24V/4A

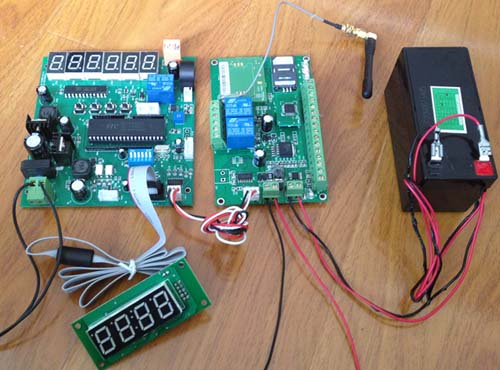

MDB-SMART timer control board ,working with GSM monitor and alarm board , and also with Backup battery

References

MDB Protocal

The MDB Spy program is implemented according to the MDB specifications as stated in :

NAMA MDB / ICP protocol specification

Supported by the NAMA, EVA and EVMMA organizations.

Version 1.0 October 14, 1998

This protocol can be obtained from the NAMA organization
