Person counter / people counter / people counting device WF-5001

The WF-5001 indoor people counter is designed to provide a simple, robust and reliable counting system suitable for public areas with entrances and exits up to 10 metres wide.

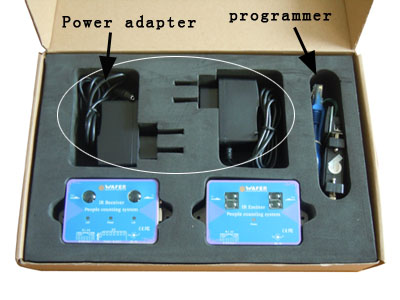

Package including:

1. Transmitter box

2. Receiver box

3. SD card (2G)

4. SD card PC reader

5. Power adapter (Two pieces)

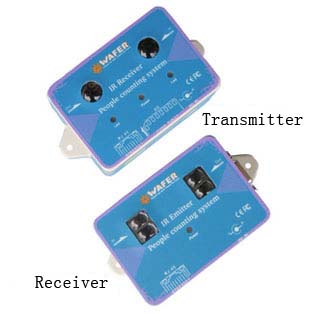

The system consists of a transmitter and receiver that are placed on either side of the entrance. The units are powered with DC9V power adapter and have low power consumption. The system uses a fast-pulse narrow infra-red beam and operates effectively in all indoor conditions, including strong sunlight. The units are supplied in strong ABS plastic boxes suitable for high usage areas and with tamper-proof screws making the counter highly resistant to vandalism.

1. RS485 Connector

2. SD Card Slot

3. Power Connector

4. RS232 Connector

5. Reset Button

10 meters sensing distance
Extremely robust construction
Low power consumption
No external sensors, cables, switches
Unaffected by bright sunlight
SD card memory data stored,easy to be stored



Fast pulse narrow beam infra-red

Entrance/Exit Width

10 meters maximum


Robust polycarbonate with tamper-proof screws to make


Transmitter: 85mmx 58 mmx 33mm
Receiver: 85mm x 58mm x 33mm

Indicators and controls:



Power LED
Beam sensing LED

People counter WF-5001 program adapter

People counter WF-5001 Optional Counter display box

Display box:size: 79mm*43mm; Maximum counter number:99999

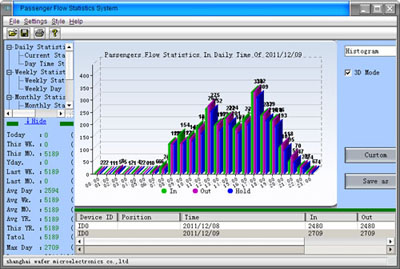

Software show:

Accessories: Double side sticker sheet

Installation projects:
