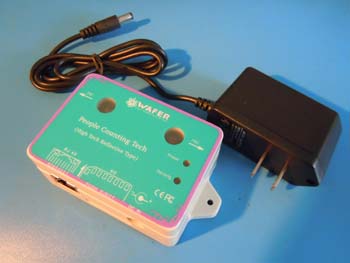

Reflective type people counting device WF-5002


The WF-5002 indoor people counter is designed to provide a simple, robust and reliable counting system suitable for public areas with entrances and exits up to 4 metres wide.

Package including:

1. Transmitter & Receiver box

2. SD card (2G)

3. SD card PC reader

4. Power adapter (DC7.5V)

The system consists of a transceiver box that are placed on the side of the entrance. The units are powered with DC7.5V power adapter and have low power consumption. The system uses a fast-pulse narrow infra-red beam and operates effectively in all indoor conditions, including strong sunlight. The units are supplied in strong ABS plastic boxes suitable for high usage areas and with tamper-proof screws making the counter highly resistant to vandalism.

Reflective type infrared beam sensor design, 4 meters sensing distance, no need intall the reflective panel
Extremely robust construction
Low power consumption
No external sensors, cables, switches
Unaffected by bright sunlight
SD card memory data stored,easy to be stored



Fast pulse narrow beam infra-red

Entrance/Exit Width

4 meters maximum


Robust polycarbonate with tamper-proof screws to make


85mmx 58 mmx 33mm

Indicators and controls:



Power LED
Beam sensing LED

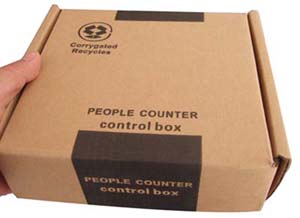

Package and inside pictures:

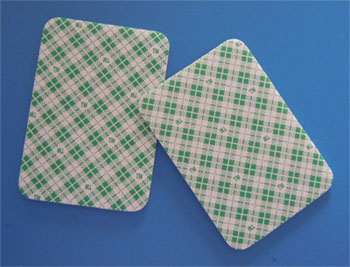

Accessories: Double side sticker sheet

Installation projects:
