Technical FAQ for GSM Alarm GA01P / GA01PR:

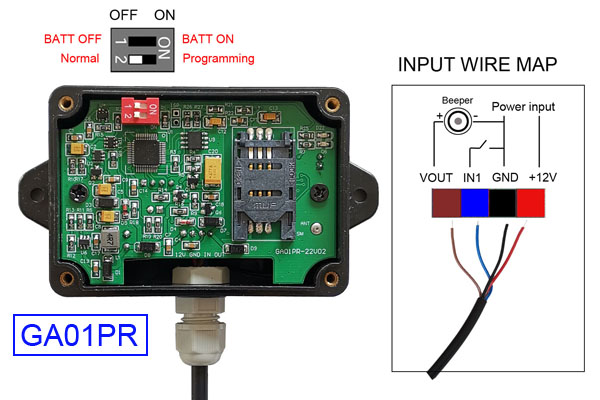

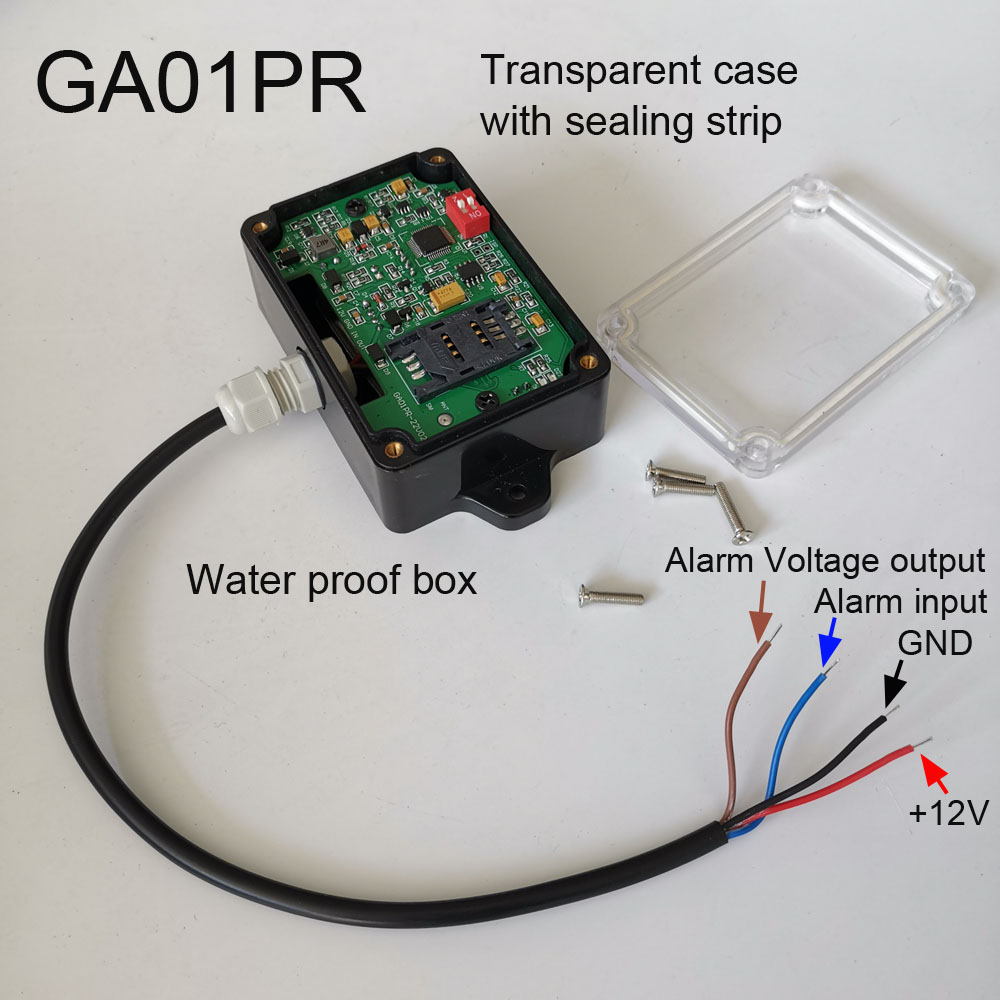

GA01PR is the Rain proof box type GA01P. Both products are fully functionally compatible

==================================================================

Install the APP from google play store: (or search the keyword gsm alarm)

https://play.google.com/store/apps/details?id=com.gentler.gsmalarm

Which type SIM card should we use ?
1. Always disable the PIN code of the SIM card. If not, the our gsm device cannot operate.
2. Delete from SIM card all lists of SMS (inbox, outbox, sent items) and disable all additional services (answering service, call forwarding,etc). Do this using a normal mobile phone.

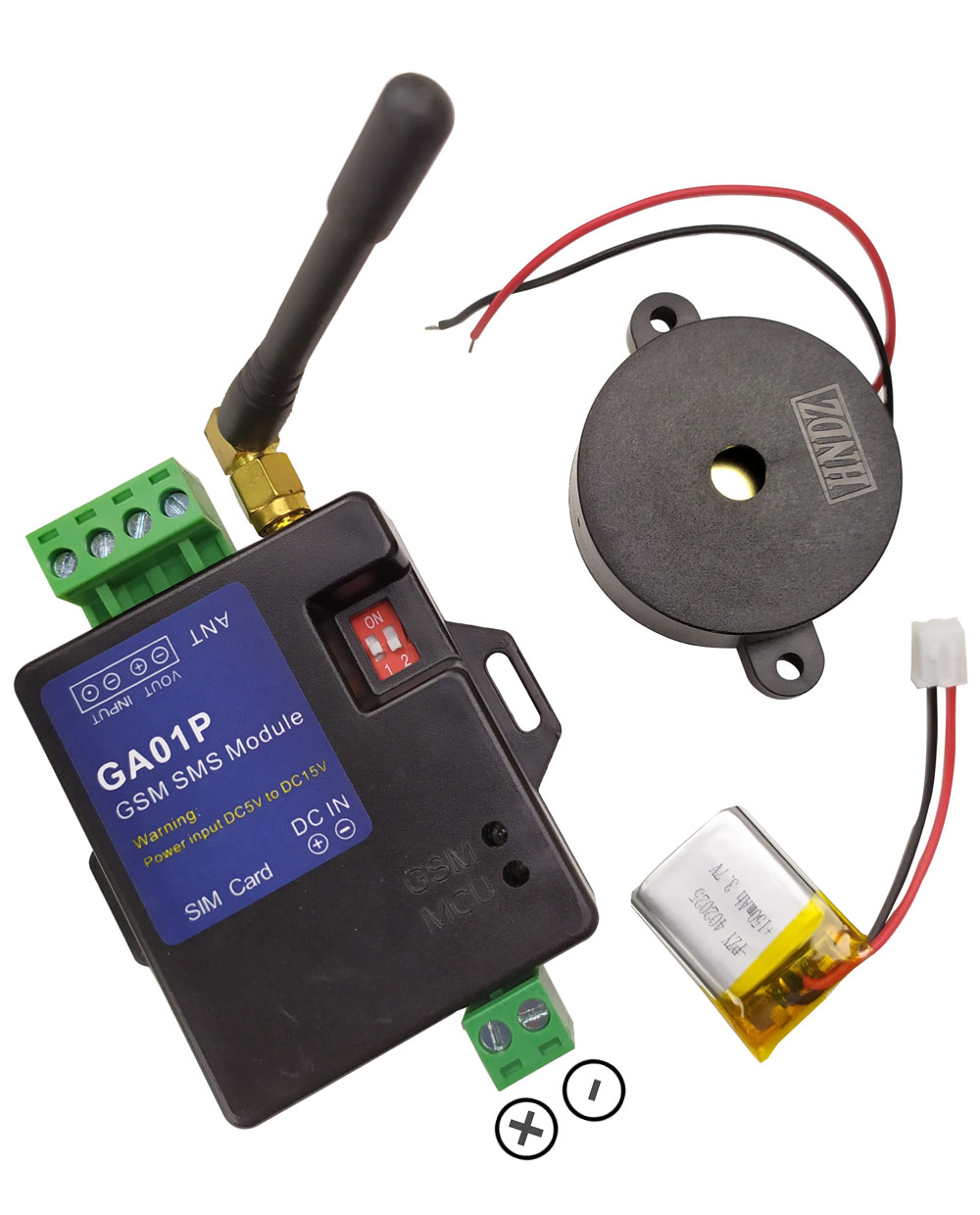

First question: What is the main features of the GA01P GSM alarm unit ?
1. GA01P sms command is compatible with GA09 ;
2. GA01P has a rechargeable battery for power failure alert ;
3. GA01P has a alarm voltage output for siren or user's project ;

For the first time to use GA01P GSM Alarm unit, Fast start with following steps:
1. Please put your sim card into it
2. Power on the device with DC12V
3. Use your mobile phone to call it , if it can reject your calling , then it is working properly.
4. Start to use the GA09 APP to start to program it

Start the test, and must pay attention to a few following things:
All the following SMS command must use the English Capital word.

1. First of all,you need to determine whether the device can be connected to the GSM net: when it is first powered on, the GSM LED flashes at about 2 times per second. After successfully connected to the GSM net, the flashing frequency is about once every two seconds.If it is a 3G device, the indicator light will remain on after connected (This step is very important,and only when it is connected to the GSM net,then can start the next step) Of course, a more direct way to judge is: use a mobile phone number that has not been stored in the device to make a call to the device, and if the device can quickly refuse to answer the call. Indicates that the device is connected to the Net
2. Start to send the SMS command to program your number to the SMS alarm numbers list
@#23242235 ( Change 23242235 to your mobile phone number, if need to add the country code, for example your country code is +56,then use the +5623242235 or @#005623242235 )
When receiving the SMS,MCU LED will flash quickly around 5 times,and then a short off and then flash a little slowly around 5 times to send the SMS
Please check the LED status, also that is very important.

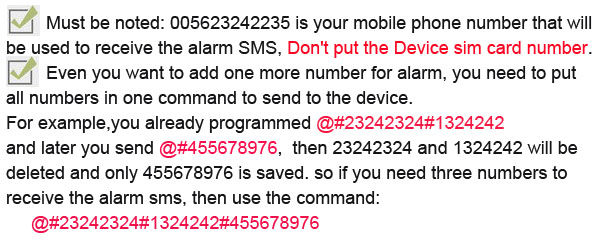

(Must be noted: 005623242235 is your mobile phone number that will be used to receive the alarm SMS, don't put the device sim card number )
(Be noted: Try to send @#... and &#... command in 2 minutes after powered on )

How to program the numbers for SMS and phone calling alert ?
Please use the same number format as when sending text messages on mobile phone. ( Some countries need to add a "0" in front of the number when don't write the country code.)
For example,if user's phone number is: and User send the SMS from the mobile phone can use . Also users can also use abbreviated numbers as to send the SMS. then you must program the number as or

Of course,some countries,don't need the extra "0" in front of the number , for example, if users from mobile phone use the abbreviated numbers as to send the SMS,then must program the number as or
All in all, we have to use the same format as the number when the mobile phone sent the text message.

Why am I not getting a SMS reply after I send the SMS messages ?

1. Please check the LED status
When received the SMS, LED will start to flash some times quickly
and when start to reply the SMS, it will flash some times a little slowly.
SO that means:
LED Flash quickly some times = Received the SMS
LED Flash slowly some times = Reply the SMS
2. If you only see the LED blinking quickly a few times, but not slowly blinking, then try the following steps:
(1) Turn off the power and turn on the power supply again
(2) Wait the device connnected to the GSM net (Normally will need to wait around 10 to 20 seconds)
(3) Start to send the @#....... and &#...... commands within 2 minutes after the device is connected to the GSM net
(4) If can received the SMS reply properly, then continue to start to send other SMS commands

----------------------------------------------------------------------------------------------------------------------------

Questions About Power Supply:
Question 1: What is the power supply voltage for GA01P ?
Anwers 1: For GA01P,power input is DC5-15V. We strongly recommend using DC12V as the power input. If you use DC5V, you must ensure that the power supply voltage is stable and the Maximum peak current can reach 2A .

Question 2: What is the power consumption of the GA01P ?
Anwers: 2: For GA01P,that is around 30mA and When at sleep mode with battery working, only 14uA.

Questions About Input and Output:
Question 1: If GA01P have some input for alarm sensors ?
Anwers: 1: GA01P have one alarm input,you can connect a switch type sensor output to it. don't apply any voltage on the alarm input. When input shorted to GND or Opened from GND will trigger the alarm.

Question 2: How many outputs on one GA01P ?
Anwers: 2: GA01P has one alarm voltage output when alarm input is triggered.

Question 3: I have the sensor output are NC and some sensors are NO type output?
Anwers: 3: GA01P,that input can be preset as NC or NO type input.

Question 4: If I can connect a temperature sensor to the GA01P ?
Anwers: 4: GA01P cann't connect the temperature sensor directly. only can connect the switch type output sensor.So you can select a temperature alarm device with relay output. and connect the relay output to GA01P. That means,when temperature
device is triggered the relay output,then we can use the output to trigger the GSM alarm input to send the SMS or start phone calling alarm.

Question 5: How to temporarily Disarm the alarm input?
Anwers: 5: Use the alarm number to call the device number,and hang up after one or two ring back tone,then alarm will be disabled for 10 minute. Keep the ring until the device reject your calling,then alarm will be disabled for 60 minutes.

Question 6: When at power failure status, if the alarm input still can be monitored ?
Anwers: 6: When the battery is powered, although the device enters the sleep mode, the input port is still monitored. If the input port is short-circuited, an alarm SMS can still be sent out. (But if the power is off for a long time, it will cause insufficient battery power and fail to connect to the GSM net and alarm, so after power off, user should restore the power supply to prevent excessive battery power consumption ) .

Another point to be reminded is that although the input alarm can still be activated when it is powered with battery, the VOUT output will not have voltage. Because the output alarm voltage is from the normal power supply voltage.

Questions About Power failure alarm:
Question 1: I don't want to send an alarm to me in the event of a power outage.I hope there is a delay

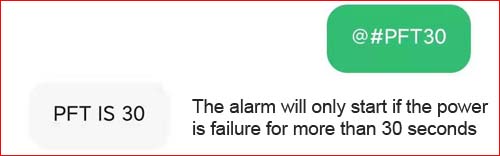

Anwers 1: You can set the delay alarm time with SMS command . This will not alert you immediately after the main power supply is cut off. The alarm will only be issued after the time has elapsed since the time interval you set. Of course, if the power supply returns to normal when the alarm time is not reached, it will not be reported to you.

Question 2: Is the input port alarm still monitored after the main power is cut off ?
Anwers: 2: Yes,after main power failure,inside battery will support the board to work and GA01P will go into power-save (sleep mode),then only when main power is restored or input alarm in triggered,then will start to connect to GSM net and send the alarm SMS or phone calling alarm.and the battery can support the board to work around 30 days.

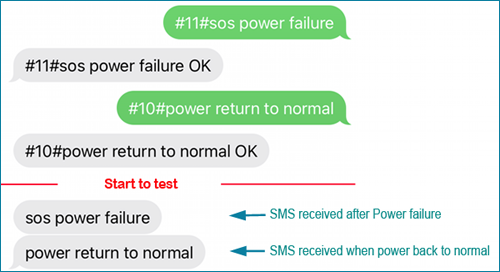

Question 3: Can i use my customized sms text for power failure alarm ?
Anwers: 3: Yes,that is no problem, we have a built-in command to change the power faiure alarm sms text and the power back to normal SMS text

#11#your customized text      for power failure alarm
#10#your customized text
for power back to normal

Questions About SMS problems receiving and sending:
Question 1: When I send the SMS command, but I cann't get the reply SMS ?
Anwers 1: First, we make sure that the device is connected to GSM net, then check the following :

(1) After sending a SMS command, we can see that the MCU Led on the box flashes a few times quickly, that is, it has received the SMS message. But I didn’t see a few slow flashes that followed, that is, no SMS messages seemed to be sent to reply.

  • Please must use the right power supply, better to use DC12V with 2A current power supply
  • Please check the SMS command you have sent and All instructions must be English Capital letters, not French or German letters. And there should be no spaces before, after or in the middle of the SMS comamnd
  • If your phone number already inside the alert phone numbers list. If your number is not inside the authorized numbers list,then device cann't reply your SMS
  • In addition, if you set up two numbers A and B for the first time, and set a C number by sending the same command the second time, there will be only C number in the device, and the two numbers A and B numbers has already been replaced with C and then A and B numbers cannot configure the device.

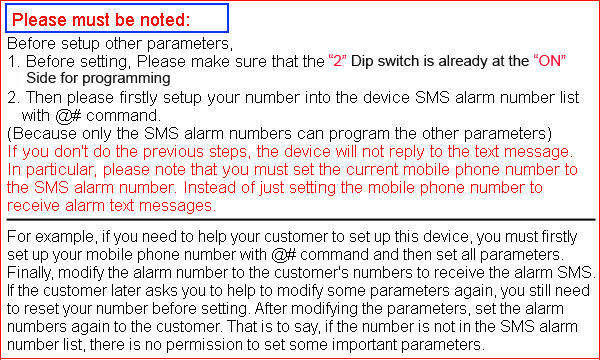

  • Check if the DIP switch is already at the ON side for programming
  • Check if your SIM card already have removed the pin code and can work in other GSM devices

(2) After sending a SMS command , we can see that the MCU LED on the box flashes a few times quickly, that is, we have received the text message. I also saw a few slow flashes right after that, but my phone did not receive any SMS.

  • Check if your SIM Card has enough credit for SMS sending
  • Due to some regulatory reasons, the frequency of sending SMS on this SIM card is too frequent, or some letters of some commands are considered sensitive, and the operator will restrict the sending of SMS.
  • Check if the DIP switch is already at the ON side for programming

Question 2: When I send the SMS command,device can reply, but when I trigger the alarm input, it cann't send the Alert SMS to the alarm numbers.
Anwers: 2: Please check the following :

  • After you send out the SMS,if the device MCU Led can flash to confirm it has received the SMS
  • If you have programmed the right phone number into the device
  • When received a SMS,MCU Led will flash quickly and During sending SMS,it will flash slowly some times

Questions About "keep-alive" report:
Question 1: Why my gsm alarm box send me a SMS every day or every several hours?
Anwers: 1: GA01P have a designed "keep-alive" report function. Download the GA01P manual and check the STEP of " Setup the Timer for status report ", if you don't want the "keep-alive" function, then just setup the T to zero: %#T0
(The end of the instruction is the number zero, not the letter O)

Questions About The APP:
Question 1: Where to download the GA09 APP?
Anwers:1: Please go to Google play store or Apple app store to search the keyword: "GA09", GL09 use the same app as the GA09. for GL09,the low voltage alarm limit need to be set with the SMS command directly.

Question 2: Download my app directly
Anwers:2: Android app link: GA09.apk

Question 3: If the GA09 App can be used for GA01P ?
Anwers:3: That is no problem. our design is compatible, and when setup,just take GA01P as the NO.1 alarm input. and Power failure alarm function , please use the SMS command to do the simple setup according to the manual.

Questions About The Battery : (How to order or replace a battery ? )

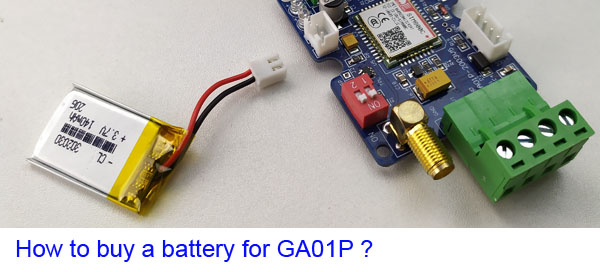

Question 1: How to buy a battery for GA01P ?
Anwers:1: Please check the battery file and parameters

and then Please go to http://www.aliexpress.com to search and order it.

For example, user can contact the following store to order :
https://ycdc.aliexpress.com/
https://easylander.aliexpress.com/

Question 2: Can I connect any battery to this input port ?
Anwers:2: The 3.7V lithium battery must be used as required, other batteries may cause the circuit board to burn out, or burn the battery.At the same time, you must pay attention to the positive and negative poles of the battery when connecting.
