GSM Temperature and Humidity Monitoring,remote controller and alarm system

(Model: WF-TP02B)

The WF-TP02 is a complete standalone temperature and humidity monitoring solution and also have two alarm input port. One of the most compact and best value for money GSM temperature and humidity monitoring solutions on the market, the WF-TP Series is perfect for a wide range of applications where the user requires up-to-date temperature and humidity information or alerts. It can be placed anywhere with a GSM signal and will monitor and record the temperature from its sensor, attached via a cable, available in 1, 2, 3 , 5 and 10m lengths. Please note that the regular sensors are not suitable for immersing in liquids.

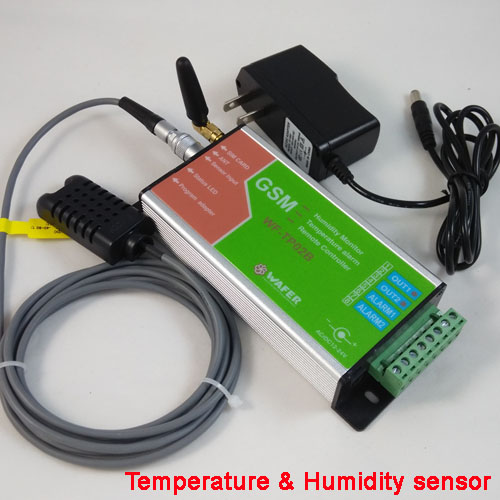

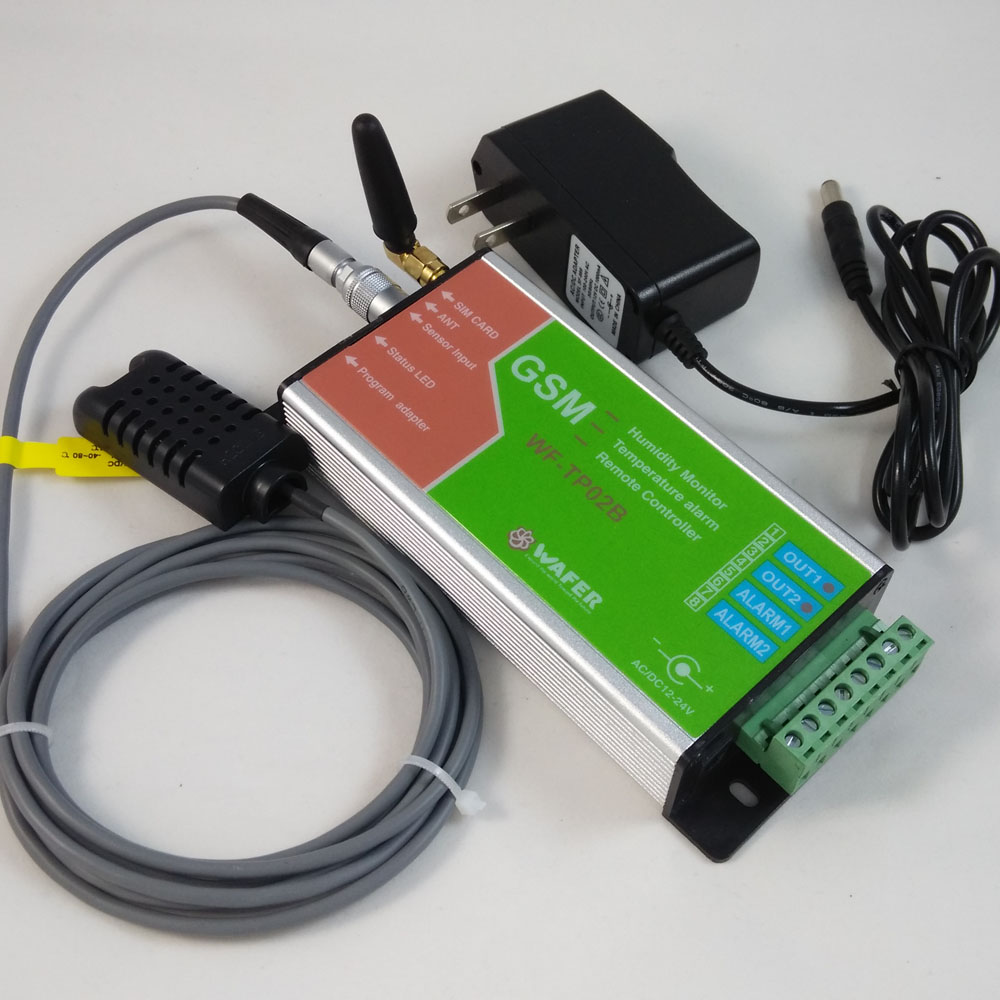

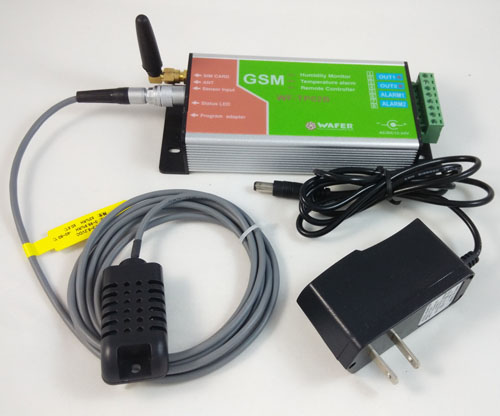

WF-TP02B with Humidity & Temperatuer sensor:

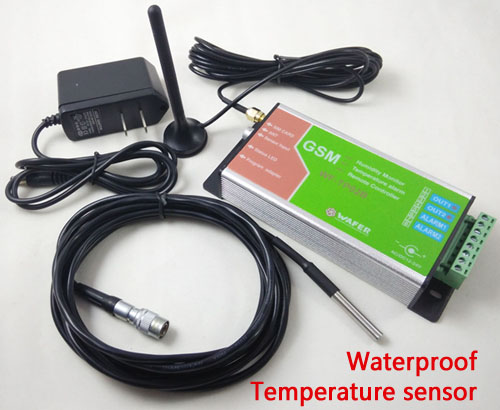

WF-TP02B with Water proof Temperatuer sensor:

Package including:

One pcs WF-TP02B GSM temperature and humidity alarm and controller (water proof )
One pcs AC to DC12V power adapter
One pcs GSM Magnet mount antenna (3 meter wire length)
One pcs USB program adaper

(Water proof type temperature sensor is also optional for order)

Our standard products is QUAD GSM BAND at 850/900/1800/1900 MHz, Before order ,please confirm your working frequency. and select the right products for your project.

Order the samples directly from http://www.wafer-shopping.com :

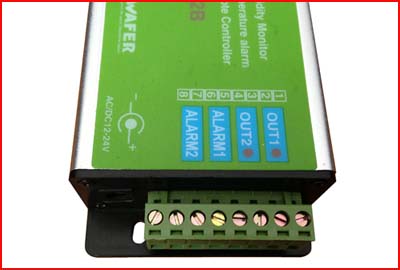

Output Terminals:

SMS Commands:

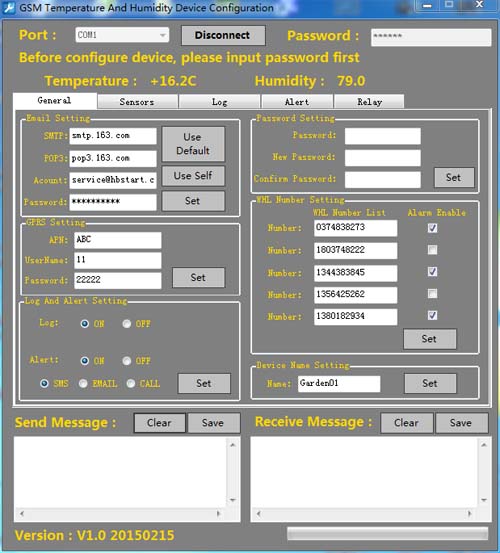

The WF-TP02 temperature and humidity monitoring unit can be configured both via a PC using a simple windows application, or by SMS text message commands to change the various settings; for example, to change maximum and minimum temperature and humidity limits, or request the current temperature and the WF-TP Series will text back the current temperature and humidity data.

Frequency Band: Global Quad Band GSM/GPRS Engine ( 850/900/1800/1900MHz )
Dimensions: 153 mm x 66 mm x 28 mm
Supply Voltage: DC12V

Typical Applications:

Server Room Monitoring
Museums, Archives, Galleries
Laboratory and Quality Test Workshops
Hospital Room Monitoring
Air-Conditioned Rooms
Cold Storage Monitoring
Green House Monitoring
Building Management and Automation

  • Robust aluminium construction.
  • Unlimited range wire free temperature monitoring using GSM module.
  • Two switch type alarm input port (volt free).
  • Two Relay outputs to control most automation systems (volt free).
  • Easy operation with 20 numbers in monitor and remote control.
  • Works with mobile phones and land lines.
  • Mains powered with DC12v power adapter.
  • Temperature Range at : -40-120'c Temperature Detection accuracy
  • Humidity Range at 0-100% RH

Download: PC Working parameters program software, USB Driver and Manual:

1. GSM Temperature & Humidity monitor and alarm device manual ( For TP02B )

2. USB Driver (CP2102 )download link from SILICON

3. PC Working parameters program software:

GSM temperature and humididy controller and alarm box

WF-TP GSM temperature controller USB Program adapter to PC Software:
